sports innovation @ M.I.T.
innovation @ M.I.T.
Why Sports Products?
From a pedagogical perspective, sports products are an ideal topic.
Sports products typically involve one- to two-year product development
cycles thus, students can be involved through the entire product
development process sports development projects lend themselves
to small student teams projects are of manageable size that students
see as an entire system Students participating in the program
may well see products they've developed marketed (and their friends
purchasing them) prior to graduation!
From a business perspective,
the sports industry is always hungry for new products and ideas.
Industry leaders recognize the commercial potential of innovation,
particularly those that apply advanced aerospace technology.
" Optimizing Cycling TT Performance"
Seconds separate the top finishers in cycling time trial events.
Since 70% of a riders power is used to overcome aerodynamic
drag, reducing drag results in free speed. Cyclists
have been tested in wind tunnels, but test facilities had not
met the needs of all the stakeholders.
Total project immersion was used to uncover the user needs. Interviews
with team directors, professional cyclists, and bike manufacturers,
were coupled with in tunnel testing using a variety of prototype
test environments. From these prototypes, a test system was developed
to meet the needs of each of these stakeholders.

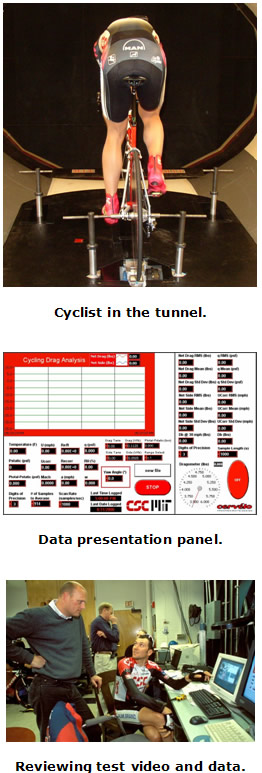

A special bike test structure was developed to minimize its interference
on the bike/rider. A data acquisition system was installed that
records, analyzes, and presents data specifically needed by each
stakeholder. A rider feedback system was developed that provides
video feedback of the riders position along with real-time
data so that the rider can observe the effect of subtle position
changes on his/her drag.
and Ice Interface Failure Analysis"
Ice climbers use ice screws to secure their safety ropes to ice
walls. Climbers experience a variety of different ice types in
the field. often leading to unsafe conditions. Due to lack of
trust in the protection, the word from the ice wall is dont
fall! The project objective was to develop a means of testing
ice screw performance in various ice conditions in a controlled
Creating ice: Good ice samples, typical of clear solid
ice seen in the field, were created by freezing normal tap water
into PVC containers. Bad ice samples, typical of aerated
ice seen in frozen waterfalls were created by freezing a 3:1 combination
of normal tap water and carbonated water.
Ice screw testing: 43-13 cm, hollow, heat-treated steel ice screws
were inserted into one of the two ice types at placement angles
of 30º, 0º, or 30º. The screws were pulled
out at load rates of either 25 mm/s (fast) 0.25 mm/sec (slow).
A lower load rate was found to increase the failure load, so climbers
should use more ice screws to increase safety. A placement angle
of 0º was found to be best for both ice types. High-speed
video footage provided evidence of a qualitative difference between
the failure modes of the fast and slow load rates. Fast loading
rates caused the ice screw to swiftly slice its way
out of the ice. The failure mode at slow rates was characterized
by the ice screw suddenly popping out of the ice.
